Launch Date
15.07.2011

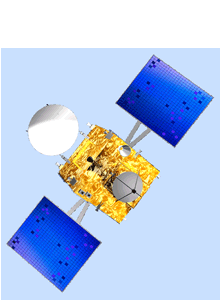

GSAT-12, the latest communication satellite built by ISRO, weighs about 1410 kg at lift-off. GSAT-12 is configured to carry 12 Extended C-band transponders to meet the country's growing demand for transponders in a short turn-around-time.

The 12 Extended C-band transponders of GSAT-12 will augment the capacity in the INSAT system for various communication services like Tele-education, Telemedicine and for Village Resource Centres (VRC).

Mission Communication
Weight 1410 kg (Mass at Lift – off)
559 kg (Dry Mass)
Power Solar array providing 1430 Watts and one 64 Ah Li-Ion batteries
Physical Dimensions 1.485 x 1.480 x 1.446 m cuboid
Propulsion 440 Newton Liquid Apogee Motors (LAM) with Mono Methyl Hydrazine (MMH) as fuel and Mixed oxides of Nitrogen (MON-3) as oxidizer for orbit raising.
Attitude Orbit Control 3-axis body stabilised in orbit using Earth Sensors, Sun Sensors, Momentum and Reaction Wheels, Magnetic Torquers and eight 10 Newton and eight 22 Newton bipropellant thrusters
Antennae
One 0.7 m diameter body mounted parabolic receive antenna and one 1.2 m diameter polarisation sensitive deployable antenna
Launch date
July 15, 2011
Launch site SHAR, Sriharikota, India
Launch vehicle PSLV-C17
Orbit Geosynchronous (83° longitude)
Mission life About 8 Years
