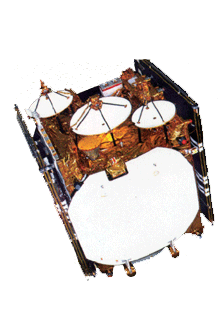

INSAT-2D
Launch Date
04.06.1997
Become Inoperable in October 1997 due to power bus anomaly.
Replaced by INSAT-2DT.
Mission
Communication
Weight
2079 kg with propellants, 995 kg dry weight
onboard power
1650 Watts
Communication
C,extended C, S and Ku bands
Stabilization
Three axis stabilized with two Momen'tum Wheels
& one Reaction Wheel,Magnetic torquers
Propulsion
Integrated bipropellan stystem ( MMH and N
2
0
4
) With sixteen 22N thrusters and 440N LAM.
Payload
Transponders:
16C-band / extended C-band transponders (forFSS),
2 high power C-band transponders (for BSS),
1S-band transponder (for BSS),1C/S-band mobile
communication transponder, 3 Ku-band transponders
Launch date
June 4, 1997
Launch site
French Guyana
Launch vehicle
Arianev 4
Orbit
Geostationary 93,.5deg.E
Inclination
0 deg.
Mission life
Seven years(nominal)
Orbit life
Very Long
